DIY Mini Split No Vacuum Pump Precharged Line Set: MRCOOL's Official Pre-Charged Line Sets vs Zone Air
Both MRCOOL DIY and Zone Air ship true DIY mini split systems that require no vacuum pump, no HVAC gauges, and no HVAC license. This is possible because each system ships with pre-charged line sets featuring factory-sealed quick connect fittings on both ends — the refrigerant loop is never opened to the air. Below, we break down how MRCOOL's official pre-charged line sets work, what "no-vac" actually means, and when Zone Air's custom-length line sets are the better fit.
Consider a concrete example: a homeowner installing a 12,000 BTU DIY mini split in a 400 sq ft workshop in spring 2026 using a pre-charged line set, finishing the job over a single weekend. Skipping a contractor install typically saves $1,500–$3,500 per zone. Pre-charged systems do not require EPA Section 608 certification for homeowner installations because you never touch refrigerant.
Already installed and showing a fault? Look it up: MRCOOL error codes, Zone Air error codes, or the full mini split error code lookup.
How MRCOOL DIY Pre-Charged Line Sets Actually Work
A pre-charged line is copper refrigerant tubing that arrives from the factory already filled with R-454B (5th Gen) and sealed at both ends, with each end staying sealed until connection. Pre-charged line sets are factory-sealed to avoid contamination from air and moisture, which is what eliminates the need for vacuuming entirely.
Available lengths include 16 ft, 25 ft, 35 ft, and 50 ft across diameter combos (1/4″×3/8″, 1/4″×1/2″, 3/8″×5/8″) matched to the system's BTU size. Each line set features patented spring-loaded quick connect valves that prevent refrigerant loss, and MRCOOL holds a patent on the quick connect line set design. They are compatible with MRCOOL DIY mini-split systems only and cannot be cut or shortened once installed.
Installation means removing the caps and hand-starting the fittings, which are designed to thread on without cross-threading. You then torque to spec with a wrench, and the valves open to let refrigerant flow. Each connection takes minutes, and no specialized HVAC tools are needed — no manifold gauges, no flaring kit, no vacuum pump, no nitrogen.
According to MRCOOL's published test results, 360º Product Testing hydrostatically pressure tested the connected fittings at a minimum of 400 PSI for at least eight hours, then pull-tested the coupler to just over 500 pounds of force. After install, the system can be leak-checked with soapy water at each joint once the service valves are open.
Quick Connect vs Traditional Flare-and-Vacuum

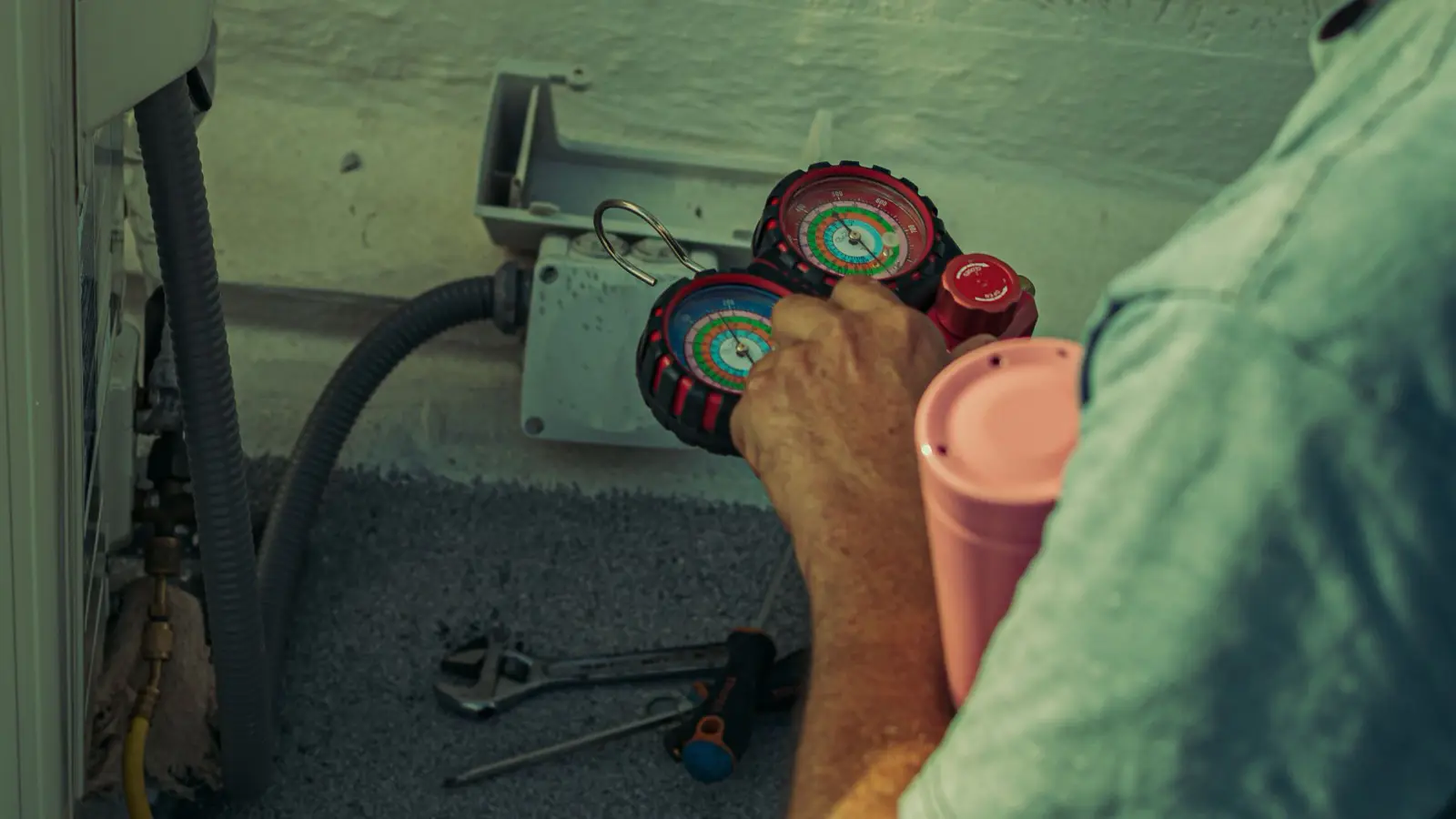

A traditional mini-split install requires a vacuum pump to remove air and moisture from the lines before the refrigerant is released. An HVAC technician runs bare copper, flares or brazes the joints, pulls a vacuum to ~500 microns, and weighs in refrigerant from a tank — all of which requires special tools and EPA Section 608 certification for refrigerant handling, plus added precautions for mildly flammable (A2L) R-454B in open-system work. The vacuum step matters because moisture left in a poorly evacuated system can form acids that damage the compressor; a factory-sealed pre-charged line never lets that moisture in to begin with.
| Step | Pre-charged quick connect | Traditional flare-and-vacuum |
|---|---|---|
| Line prep | None: sealed, pre-charged, capped | Cut, deburr, flare or braze bare copper |
| Evacuation | None | Vacuum pump to ~500 microns, decay test |
| Refrigerant | Already in the lines and condenser | Release factory charge, weigh in extra for long runs |
| Tools | Wrenches, torque wrench, drill, level | Plus gauges, vacuum pump, micron gauge, flaring kit, scale |
| License | None for the refrigerant side | EPA 608 to handle refrigerant |
| Line length | Fixed at the factory; coil excess, never cut | Cut to any length on site |
MRCOOL DIY quick connect line sets flip that process: no open copper, no vacuum, no nitrogen. The refrigerant charge is pre-measured for the line set length, the quick-connect fittings keep the install simple, and the "no-vac" claim is legitimate because the refrigerant is sealed factory-to-fitting.
Planning Your Install and Avoiding Kinks
Choose your line set length before shopping. Too short and you can't connect; too long and you coil excess copper behind the condenser. Route the line from the indoor unit to the outdoor unit on paper first, accounting for vertical rise and bends, and keep every bend gentle — a kinked pre-charged line cannot be repaired in the field. Use DIY couplers sparingly, because each one adds another pair of joints to torque and leak-check.
Drill a 3″ to 3-1/2″ wall penetration sloped slightly downward toward the outside, feed the control cable and drain first, then the pre-charged line. Never cut or try to shorten a sealed line — this vents refrigerant illegally and voids your warranty.
Not sure what size you need? Run the room through a mini split sizing calculator before you pick a line set, since the BTU size decides the line diameter.
Zone Air vs MRCOOL DIY: Line Set Strategy and Leak Points
MRCOOL DIY is the best-known name in the space, but Zone Air's line sets take a structurally different approach: pre-charged single runs made to length, from 5 to 75 ft in whole feet, versus MRCOOL's fixed 16/25/35/50 ft lengths.
- 40 ft run: MRCOOL means a 50 ft set with ~10 ft coiled behind the condenser. Zone Air ships an exact 40 ft run — one pair of quick connect fittings, no coil.
- 60 ft run: MRCOOL requires joining two sets with a coupler, doubling the quick connect joints. Zone Air delivers a single 60 ft line with fewer joints to leak-check.
Beyond the line set:
- Efficiency depends on voltage. Zone Air's 12K 230V wall system is rated 24 SEER2, versus 23.5 SEER2 for MRCOOL's 12K DIY 5th Gen. MRCOOL's standard 12K is a 115V unit, though, and at 115V the order flips: Zone Air's 12K 115V is 23 SEER2, half a point below MRCOOL.
- 115V power. Both brands sell 115V 12K systems, but they wire differently. MRCOOL's 115V units are hard-wired to a dedicated 20 amp circuit. Zone Air's run on a dedicated 15 amp circuit, with an optional cord kit that lets you plug into a dedicated GFCI outlet where local code allows — the easiest power connection for garages and workshops. Details in our MRCOOL 120V 15 amp guide.
- Indoor unit mix. Zone Air lets you mix wall, cassette and slim concealed ducted heads — two or three of any style — on a single multi-zone condenser. MRCOOL DIY multi-zone heads are wall-mount and ceiling cassette; its ducted option is a separate whole-home DIY Hybrid Air Handler for existing ductwork. See the multi-zone concealed duct comparison.
- Price. Zone Air sells direct: $1,999.99 for the 12K 115V system and $2,049.99 for the 12K 230V, versus about $2,359 for MRCOOL's 12K 115V DIY 5th Gen at Home Depot in September 2026 — roughly 15% less like-for-like.
- Reviews. Zone Air averages 4.8 out of 5 from verified buyers on its own site. MRCOOL's Trustpilot profile sat at 3.2 out of 5 across 89 reviews in September 2026, with 47% one-star — you can check both for comparison.
| MRCOOL DIY 5th Gen 12K | Zone Air 12K 115V | Zone Air 12K 230V | |
|---|---|---|---|
| Voltage | 115V, hard-wired, 20A | 115V, dedicated 15A (optional cord kit) | 230V |
| SEER2 | 23.5 | 23 | 24 |
| Line set | 25 ft included; 16/25/35/50 ft sold | 16 ft included; 5–75 ft made to length | 16 ft included; 5–75 ft made to length |
| Vacuum pump / EPA 608 | Not needed | Not needed | Not needed |
| Warranty | 5 yr parts / 7 yr compressor, no registration | 5 yr parts / 7 yr compressor | 5 yr parts / 7 yr compressor |
| Price | ~$2,359 | $1,999.99 | $2,049.99 |
Warranty sources: the MRCOOL DIY 5th Gen warranty and Zone Air's warranty page. Efficiency tiers for both are listed in ENERGY STAR's ductless category.
Which DIY Mini Split and Line Set Setup Is Right for You?
Any homeowner ready for a no-vacuum, no-gauges install with no HVAC license required can choose between MRCOOL DIY's fixed-length pre-charged line sets and Zone Air's custom-length approach.
- Choose MRCOOL DIY if: fixed 16/25/35/50 ft line sets cover your runs, you want big-box store availability, you want the more efficient 115V unit, and you're comfortable ordering couplers where needed, even though extra joints mean more connections that could leak.
- Choose Zone Air if: your runs are awkward lengths, you want the fewest quick connect joints to help reduce leaks, you value 24 SEER2 efficiency on 230V, or you want the 15 amp plug-in option and concealed ducted heads.
Measure your rooms, plan your route on paper, and order the right length before you start, so a missing line set doesn't stall your weekend install. Both brands deliver a factory-sealed, tested system that works as intended once connected — the difference is how the line set fits your specific home. More brands, including EG4, Airspool and Perfect Aire, are adopting this design in 2026–2027, but MRCOOL and Zone Air remain the primary options for true no-vac DIY mini split installs. For the wider field, see our quick connect brand roundup and best pre-charged line set comparison.
FAQ: DIY Mini Split No Vacuum Pump
Do DIY mini splits need a vacuum pump?
Not if they use a pre-charged quick connect line set. MRCOOL DIY and Zone Air both ship line sets that are filled with refrigerant and sealed at the factory, so the refrigerant loop is never opened to air and there is nothing to evacuate. A vacuum pump is only needed on a traditional flare-type system, where bare copper is field-connected and has to be pulled down to about 500 microns before the refrigerant is released.
Do I need an EPA 608 certification to install a pre-charged mini split?
No. EPA Section 608 certification covers opening a refrigerant circuit and handling refrigerant. Connecting a factory-sealed quick connect line set does neither, so a homeowner can install it without a license. Electrical work is separate and may still need a permit or a licensed electrician under local code.
What lengths do MRCOOL's official pre-charged line sets come in?
MRCOOL DIY quick connect line sets come in 16, 25, 35 and 50 ft lengths, in diameter pairs matched to the system size. They are compatible with MRCOOL DIY systems only and cannot be cut or shortened. Longer runs are made by joining two sets with a coupler, which adds another pair of quick connect joints.
Can you cut a pre-charged line set to length?
No. Cutting a sealed pre-charged line vents the refrigerant, which is illegal to do intentionally, ends the no-vacuum install and voids the warranty. Excess length is coiled neatly behind the condenser instead. That is why ordering the right length up front matters, and why a line set cut to your exact run at the factory is an advantage.
How were MRCOOL's quick connect line sets tested?
MRCOOL reports that 360º Product Testing hydrostatically pressure tested the connected fittings at a minimum of 400 PSI for at least eight hours, then pull-tested the coupler to just over 500 pounds of force. MRCOOL also holds a patent on the quick connect line set design.
Is Zone Air or MRCOOL more efficient?
It depends on voltage. Zone Air's 12K 230V wall system is rated 24 SEER2, against 23.5 SEER2 for MRCOOL's 12K DIY 5th Gen, which is sold as a 115V model. At 115V the order flips: Zone Air's 12K 115V is 23 SEER2, so MRCOOL is the more efficient 115V unit by half a point.
Specifications, efficiency ratings, prices, test results and warranty terms above are manufacturer- or retailer-published as of September 2026 and are subject to change; verify current details before purchase. MRCOOL and Zone Air are trademarks of their respective owners. DIY HVAC Tools is not affiliated with or endorsed by MRCOOL, and this is not an official MRCOOL publication.
