Best DIY Multi Zone Concealed Duct Mini Split: Zone Air vs MRCOOL vs Mitsubishi (2026)

Quick Answer: Best DIY Multi Zone Concealed Duct Mini Split in 2026

For 2026, the best overall DIY multi zone concealed duct mini split is a Zone Air concealed ducted system. MRCOOL earns the runner-up spot, and Mitsubishi remains the professional installation benchmark.

• Zone Air is the only brand in this comparison selling slim concealed-duct air handlers - 9,500 and 11,000 BTU - that mix with wall and ceiling cassette heads on a single outdoor condenser, all on pre-charged quick-connect line sets. Its concealed systems are rated 19 to 19.6 SEER2 single-zone and 22 SEER2 in 3-zone form, with line runs ordered by the foot instead of picked from fixed lengths.
• MRCOOL DIY multi zone is a strong choice for wall mounted and ceiling cassette mini split setups, with up to six zones on the new 55,000 BTU 5th Gen condenser. Its ducted option - the DIY Hybrid Ducted Air Handler - is a central, multi-position air handler for whole-home ductwork rather than a slim concealed short-run head.
• Mitsubishi Electric remains the premium choice for professional multi zone concealed duct installs, with horizontal-ducted indoor units and up to eight zones per outdoor unit, but it requires EPA-certified contractors and commonly adds several thousand dollars per zone in installed cost.

Who should choose what:

• Zone Air - most DIY homeowners who want hidden ducted zones, the lowest number of refrigerant joints, and the option to mix head styles on one condenser
• MRCOOL - DIY homeowners happy with wall mounted or cassette indoor units, or who want one central ducted handler plus a couple of heads
• Mitsubishi - homeowners with larger budgets who prefer full professional installation, four or more hidden zones, and maximum cold-climate performance

How Multi Zone Concealed Duct Mini Splits Work

A multi zone concealed duct mini split heat pump connects one outdoor unit to multiple indoor units, where slim ducted air handlers hide above ceilings or inside soffits. Instead of visible wall heads, conditioned air flows through short custom duct runs to discreet supply registers. The result is climate control that blends into a finished space instead of announcing itself.

• Multi zone means one outdoor condenser powers multiple indoor units - typically two to five air handlers. Single-zone systems connect one outdoor unit to one indoor unit.

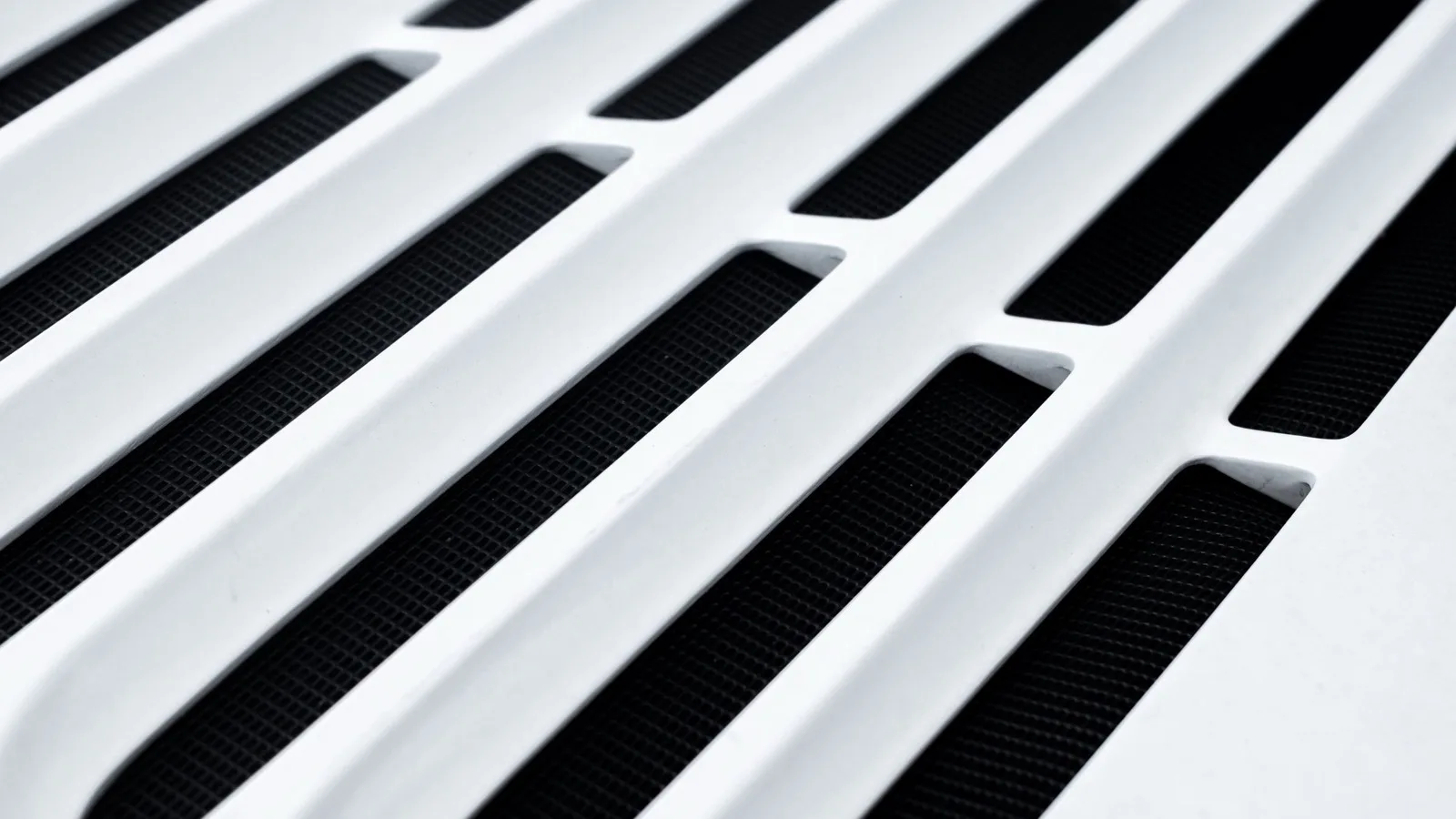

• Concealed duct means the indoor air handler is hidden and only vents are visible. It is the opposite of a wall mounted head that takes up wall space.
• Heat pump vs air conditioner: a heat pump provides both heating and cooling by reversing the refrigerant cycle, while a cooling-only mini split air conditioner handles summer alone. Every system in this comparison is a heat pump.

Example layout. A 3-bedroom home might use a 27,000 BTU multi-zone condenser feeding two 11,000 BTU concealed duct handlers - one serving a primary suite, one serving two bedrooms off short branches - plus a 12,000 BTU wall head in the living room. That is three independently controlled zones on one outdoor unit. If you need four or more hidden zones, you are into larger condensers: MRCOOL's 55,000 BTU 5th Gen unit handles up to six, and Mitsubishi multi-zone outdoor units handle up to eight.

Concealed ducted systems avoid bulky wall units, allow independent temperature control per zone, distribute air more evenly across a room, and run quieter in the space because the fan noise stays above the ceiling. Zone Air rates its concealed handlers at 39 dB in quiet mode versus 30 dB for its wall heads - the hidden unit is the louder box on paper, but the ceiling and duct run between you and it changes what you actually hear.

One planning limit worth knowing up front: a concealed head is designed to serve two to four rooms off short branches, not a whole floor. Hidden HVAC across an entire floor plan means several concealed heads on a multi-zone condenser, not one oversized handler pushing air 40 ft down a duct.

DIY vs Professional Install: What Really Counts as a DIY System?

A true DIY system uses pre-charged, quick-connect refrigerant line sets. Because you never open the refrigerant circuit, the install needs no vacuum pump, no gauges and no EPA Section 608 certification. You connect the lines, tighten the fittings, and the factory charge handles the rest.

• Zone Air and MRCOOL qualify as true DIY systems. Both ship pre-charged line sets with quick-connect fittings, and neither requires flaring or evacuation for the refrigerant connections.
• Mitsubishi, Fujitsu and Daikin systems use flared or brazed copper that must be pressure tested, evacuated with a vacuum pump and charged - professional installation only for most homeowners.
• Concealed duct has historically been pro-only because it meant field-fabricated copper and duct design. Zone Air changes the refrigerant half of that equation by shipping concealed-duct indoor units with pre-charged quick-connect line sets; you still plan and build the short duct runs yourself.

Even a DIY system still involves electrical work. Concealed and multi-zone Zone Air configurations are 208-230V, so they need a dedicated circuit and a disconnect wired to code - many jurisdictions want a licensed electrician for that step. Zone Air's 115V plug-in option exists on select single-zone wall models, not on concealed or multi-zone systems, so budget for the 230V circuit on a hidden-duct project.

Attempting a flare-connection system without the tools and certification invites the failure modes you least want behind drywall: leaks at flare joints, voided warranty coverage, and lost efficiency from incomplete evacuation. Warranty policies also differ sharply between DIY-sanctioned and pro-only brands, so verify terms before you buy tools.

Key Buying Factors for Multi Zone Concealed Duct Mini Splits

Before comparing specific brands, these are the factors that decide whether a hidden ducted system works in your house.

Technical specs

• Total BTU capacity and number of zones, plus how much connected capacity the condenser allows
• Efficiency ratings: SEER2 for cooling, HSPF2 for heating - and note that concealed heads rate lower than wall heads on the same platform
• Operating temperature range in both directions, especially the heating floor if you are in a cold climate
• Refrigerant: current DIY systems from both Zone Air and MRCOOL use the low-GWP A2L refrigerant R-454B
• Static pressure limits, which are the make-or-break spec in concealed duct systems - Zone Air's concealed units include external static pressure adjustment

Comfort and usability

• Indoor noise ratings, remembering that a concealed handler's rating is measured at the unit, not in the room below it
• Filtration and dehumidification modes, plus how easy filter access is once the handler is in a ceiling
• Wi-Fi apps, smart-home integration and wired controller options

Installation factors

• Pre-charged line sets versus traditional flare - this is the single biggest DIY dividing line
• Maximum line length and height difference limits
• Whether you can mix concealed duct with wall and cassette heads on one condenser
• Cavity depth: a Zone Air concealed handler is about 8 inches tall before you add branch duct and a return path

Cost factors

• Equipment price, line set cost per zone, duct materials, electrical work, and labor if any
• Rebates: the federal 25C tax credit ended for equipment placed in service after December 31, 2025, but state and utility heat-pump rebates still exist in many areas - check yours before assuming a credit
• Warranty coverage and whether DIY installation affects it

For a full-fleet view of which DIY brands ship no-vacuum systems at all, see our best quick connect mini split brands comparison, and for capacity math start with the mini split sizing calculator.

Zone Air DIY Multi Zone Concealed Duct Systems (2026)

Zone Air is our pick for DIY concealed duct in 2026 because its concealed-duct air handlers are sold as part of the same pre-charged DIY lineup as its wall and cassette heads, on the same 27,000 BTU multi-zone condenser.

Core specs, from Zone Air's published product data:

• Concealed-duct indoor units rated 9,500 BTU (up to 475 sq ft) and 11,000 BTU (up to 550 sq ft)
• 19.6 SEER2 on the 9,500 BTU single-zone system, 19 SEER2 on the 11,000 BTU and on dual-zone concealed bundles, 22 SEER2 on 3-zone concealed bundles
• R-454B refrigerant, heat pump operation to -13°F, cooling to 131°F
• 39 dB quiet mode at the handler, built-in condensate pump, external static pressure adjustment, front-access washable filters
• ENERGY STAR and NEEP listed, with a 5-year parts and 7-year compressor warranty that DIY installation does not void

Line sets ordered by the foot are the standout feature. On a multi-zone build each zone picks its own run in whole feet from 5 to 75 ft, so you are not coiling excess copper behind the condenser or joining two fixed-length sets to reach a far bedroom. One pair of quick-connects per zone, at the length that zone actually needs.

Mix-and-match capability is the other reason it fits whole-house projects. Zone Air's multi-zone configurator lets you put two or three heads of any style - wall, ceiling cassette or concealed ducted - on one 27,000 BTU condenser. That is the layout most retrofits actually want: hidden ducted zones in bedrooms and hallways, a wall head in the living room, maybe a cassette over an open kitchen.

Pricing. Zone Air sells direct, which shows up in the numbers. Single-zone concealed systems start at $2,069.99 for the 9,500 BTU and $2,469.99 for the 11,000 BTU; dual-zone concealed bundles are $4,039.99 and 3-zone concealed bundles $4,809.99. Cassette, concealed and all multi-zone systems are priced without a line set, so add one pre-charged run per zone from $229.99. A fully hidden 3-zone system with 16 ft runs on each zone lands near $5,500 all in.

Zone counts. Two- and three-zone systems are the stock configurations, with up to 36,000 BTU of connected indoor capacity on the 27,000 BTU condenser; four- and five-zone layouts are handled by quote rather than sold off the shelf. If you need six or eight hidden zones in one house, that is where MRCOOL's larger condenser or a Mitsubishi system enters the conversation.

Ideal use cases: whole-house DIY retrofits where bedrooms get hidden ducted zones and the main living space gets a wall or cassette head, in homes with attic, soffit or dropped-ceiling access above the rooms being conditioned.

MRCOOL DIY Multi Zone Systems: Strengths and Limits for Concealed Duct

MRCOOL is the DIY mini split you will find on big-box shelves, with a large online community, established documentation and a long record of homeowner wall-mount installs. A straightforward wall-mount zone can genuinely go in over a weekend.

What MRCOOL offers in 2026:

• DIY 5th Generation multi-zone systems with indoor units from 6,000 to 36,000 BTU; the 18,000 BTU condenser now supports three zones and the new 55,000 BTU condenser supports up to six
• 23 SEER2 on the 36,000 BTU 3-zone system, up to 23.6 SEER2 on the flagship single-zone DIY unit
• R-454B refrigerant, QuickConnect pre-charged line sets, SmartHVAC app and voice-assistant compatibility
• Indoor styles: wall mount, one-way ceiling cassette, and the DIY Hybrid ducted air handler
• 5-year parts and 7-year compressor warranty with no registration required, and DIY installation does not void it

Where the concealed-duct story diverges. MRCOOL's ducted option, the DIY Hybrid Ducted Air Handler, comes in 24,000 and 36,000 BTU and installs upflow, downflow or horizontally like a central air handler - it is designed to feed whole-home ductwork and pairs with wall or cassette heads on the same condenser. That is a genuinely useful product, and it is not the same thing as a slim concealed head serving two to four rooms off 8 to 15 ft branches. If your plan is hidden per-room zones rather than one central duct system, MRCOOL's lineup doesn't offer a direct equivalent to Zone Air's concealed handlers.

Line set limitation. MRCOOL QuickConnect line sets come in fixed 16, 25, 35 and 50 ft lengths. If your run is 40 ft, you coil roughly 10 ft of copper behind the condenser; if it is 60 ft, you join two sets and double the quick-connect valves on that zone. Every added fitting is another joint to seal, which matters more on a concealed install where the line set often disappears into an attic or a wall cavity.

Strengths. Established installer community, wide parts availability, fast wall-unit installs, up to six zones on one condenser, and solid multi-zone efficiency at 23 SEER2. MRCOOL is a strong choice where visible wall or cassette heads are acceptable, or where you want one central ducted handler rather than several hidden zones.

For balanced owner feedback, MRCOOL's Trustpilot profile sat at 3.2 out of 5 from 89 reviews with 47% one-star ratings when we last checked in September 2026; recurring themes there are warranty denials on self-installs, unresponsive support and shipping charges on warranty parts, alongside praise for install simplicity. If you are troubleshooting an existing unit, our MRCOOL error code list decodes what the display is telling you.

Mitsubishi Multi Zone Concealed Duct Systems: Premium, But Not DIY

Mitsubishi Electric is the reference point for professional multi zone concealed duct work. Its horizontal-ducted indoor units can be mounted in an attic, hidden in a ceiling, installed beneath a floor or concealed behind a wall, and the engineering support behind them is deep.

• Not DIY. Mitsubishi indoor units use flare connections that require pressure testing, evacuation and charging - EPA Section 608 certification territory. Homeowner installation is not supported and generally forfeits warranty coverage.
• Installed cost is high. Equipment plus professional labor commonly runs several thousand dollars per indoor zone, and whole-house multi zone concealed duct projects routinely land in five figures.
• Cold climate. Mitsubishi's Hyper-Heating INVERTER (H2i) systems deliver up to 100% rated heating capacity at 5°F and keep heating in outdoor temperatures as low as -13°F, per Mitsubishi's own published figures. That is the same published floor as Zone Air's -13°F and MRCOOL's E-Star tier, with a deeper engineering record behind it and a capacity curve documented zone by zone.
• Zone count. One multi-zone Mitsubishi outdoor unit connects up to eight indoor units - more than any DIY system currently offers.
• Duct flexibility. Mitsubishi publishes low- and mid-static ducted options, which allows longer and more complex duct layouts than a DIY concealed head is designed for.
• Warranty. Extended coverage - up to about 12 years on parts and compressor - depends on installation by a Mitsubishi Diamond Contractor plus product registration; coverage is shorter otherwise.

Mitsubishi wins on zone count, duct design latitude, documented capacity at temperature, and the multi-decade field record of its ducted lineup. What it cannot do is let you skip the contractor, and on a four-room hidden-duct retrofit that difference is usually five figures. If you are weighing an existing Mitsubishi system's fault codes, our Mitsubishi error code reference covers the self-diagnosis tables.

Line Sets and Leak Points: Why Ordering by the Foot Matters

A refrigerant line set is the pair of insulated copper tubes carrying refrigerant between the outdoor condenser and each indoor air handler. Every connection along that path is a potential leak point over the life of the system, and on a concealed install those connections are often the least accessible parts of the job.

• The fixed-length approach: factory-charged sets in 16, 25, 35 or 50 ft. Shorter run than the set? You coil the excess. Longer? You join two sets and add a second pair of quick-connect valves on that zone.
• Each added fitting is one more joint that has to hold charge for a decade or more. Slow refrigerant loss shows up as weak capacity, higher power bills and, eventually, a warranty conversation.
• Zone Air's approach: a single pre-charged run ordered by the foot, 5 to 75 ft, chosen per zone. One pair of quick-connects per zone, no coiling, no joining, no extra valves.

Fewer connections mean a safer DIY install and less to troubleshoot later. That logic applies to any mini split, but it compounds on multi zone concealed duct systems, where you may be routing three separate line sets through an attic and down interior walls. Every joint you avoid is a joint you never have to find behind drywall. Our deeper look at line set design across brands is in the pre-charged line set comparison.

Energy Efficiency and Operating Costs

SEER2 is the current U.S. standard for cooling efficiency; HSPF2 measures heating efficiency. Higher numbers mean lower bills for the same output. All three brands here use inverter-driven compressors that modulate rather than cycling on and off, which is where most of the real-world savings come from.

Be careful comparing concealed to ductless numbers. Short duct runs add static pressure, and manufacturers rate concealed heads accordingly:

• Zone Air concealed: 19.6 SEER2 (9.5K single-zone), 19 SEER2 (11K and dual-zone), 22 SEER2 (3-zone bundles)
• Zone Air wall: up to 24 SEER2 on the 12,000 BTU 230V single-zone system
• MRCOOL DIY: 23 SEER2 on the 36,000 BTU 3-zone, up to 23.6 SEER2 on the flagship single-zone

So if peak SEER2 is your only metric, a wall head wins - on any brand. The reason to accept 19 to 22 SEER2 in a concealed system is what you get for it: no visible equipment, better air distribution within the room, and quieter operation in the space. Even at 19 SEER2 you are well above the 14 to 16 SEER2 typical of central systems, and a concealed mini split avoids the duct losses that come with long trunk lines through unconditioned attics. A short 8 to 15 ft branch simply loses less than 50 ft of central trunk.

What that means for bills. Mini splits generally run 20 to 40% more efficient than central air on the same load. Replacing an old 10 SEER central system with a modern high-SEER2 mini split commonly saves several hundred dollars a year in a warm climate - roughly $500 to $1,000 annually on a whole-home swap, which compounds to $5,000 to $10,000 over ten years. Treat those as estimates: your climate, rates, insulation and setpoints move the number more than the brand badge does.

The inverter compressor also runs longer at low speed in a well-sized zone, which improves dehumidification and keeps room temperature steadier than a single-stage system cycling against a thermostat.

Designing Your Zones: Sizing, Layout, and Indoor Unit Choices

Getting BTU sizing right prevents short-cycling from oversized equipment and cold rooms from undersized equipment. Concealed installs punish oversizing more than wall heads do, because short duct runs make the inverter sensitive to load mismatch - if you are between sizes, derate rather than upsize.

Basic sizing rule: budget roughly 20 BTU per square foot of conditioned space, then adjust up for high ceilings, poor insulation or heavy sun exposure and down for well-insulated or shaded rooms. A 500 sq ft room lands near a 12,000 BTU class head. Run your actual rooms through the sizing calculator before you order.

Example scenarios:

• Dual-zone hidden, about 950 to 1,100 sq ft: two concealed handlers - 9,500 BTU each for two similar bedrooms, or 11,000 plus 9,500 for a primary suite plus an office
• 3-zone, about 1,500 sq ft: one 11,000 BTU concealed handler for the main living area plus two 9,500 BTU concealed handlers for bedrooms, all on the 27,000 BTU condenser
• Mixed 3-zone: two concealed handlers in bedrooms plus one wall or cassette head in the great room, which keeps cost down where hiding the unit doesn't matter

Trade-offs between head types:

• Concealed duct: best aesthetics, even air distribution, serves two to four rooms per head - but needs cavity space, duct planning and an access panel
• Wall mounted: simplest install, easiest filter access, highest SEER2 - but visible and it claims wall space
• Cassette: clean recessed ceiling look with four-way airflow, good for open rooms - but needs a ceiling cavity and costs more than a wall head

Concealed-specific planning numbers. Zone Air's concealed air handlers are about 8 inches tall, so plan cavity depth for the handler plus branch ducts and a return path. Keep branches in the 8 to 15 ft range, hold total equivalent duct length to roughly 25 to 40 ft, and keep external static pressure near or below 0.5 in. w.c. Place supply registers for even coverage, and put the return grille somewhere you will actually be willing to reach a filter every month.

DIY Installation Overview: What's Involved with Concealed Duct Systems

Here is the high-level roadmap for installing a pre-charged multi zone concealed system:

1. Mount the outdoor condenser on a pad or wall bracket, with anti-vibration pads and clearance for airflow
2. Hang the indoor air handlers - concealed units go in the attic, soffit or ceiling cavity; any wall heads mount to interior walls
3. Run the pre-charged line set and communication wire for each zone, keeping bends gentle and within the manufacturer's length and height limits
4. Build the short duct runs - trunk and branches - and set the supply registers and return grille
5. Connect the condensate drain with continuous slope to the drain point (Zone Air's concealed units include a built-in condensate pump)
6. Wire power to the outdoor unit on its dedicated 208-230V circuit and commission the system

What's different from a wall-only install: duct path planning, branch sizing, a return-air pathway for each ducted handler, and an access panel so the handler can be serviced later. Zone Air puts a concealed install at about 6 to 8 hours per zone versus 4 to 6 for a wall head - call it 2 to 4 extra hours of ceiling work.

What pre-charged line sets remove: vacuum pump, manifold gauges, brazing, refrigerant handling and the EPA certification that goes with it. That is the part of a conventional install that makes concealed duct a contractor job.

What you may still want help with: the dedicated 230V circuit and disconnect. Concealed and multi-zone systems are 230V, so unless you are comfortable and permitted to do panel work, plan on an electrician for that step.

Best practices: stay within line length and height limits, avoid kinks, slope the condensate line correctly, insulate duct runs in unconditioned space, and provide adequate return air for every ducted handler. If a zone throws a fault during commissioning, our error code lookup will tell you what the display means before you start pulling things apart - Zone Air codes are here.

Cost Comparison: DIY Multi Zone vs Mitsubishi Professional Install

Here is what a 3-zone project looks like across the three brands. Zone Air and MRCOOL figures are current published list or sale prices; Mitsubishi figures are typical installed-cost estimates, since the equipment is sold through contractors rather than direct.

Two things stand out. First, a fully hidden Zone Air 3-zone system costs roughly what a visible wall-head MRCOOL 3-zone system costs - concealed duct is no longer a premium you pay several thousand dollars for. Second, both DIY paths land at roughly half to a third of a comparable professionally installed Mitsubishi concealed duct project, and nearly all of that gap is labor.

Long-term ownership: single-run line sets mean fewer joints to leak and less to diagnose later; Mitsubishi's longer warranty (about 12 years with a Diamond Contractor install and registration) is real value if you are hiring a pro anyway; and both DIY brands keep their 5-year parts and 7-year compressor coverage intact on a homeowner install. A multi zone system also shares one outdoor unit across all zones, which is why it beats installing separate single-zone systems room by room on both equipment and electrical cost.

Brand Reputation, Reviews, and Where to Research Further

Owner feedback matters more on multi zone systems than single-zone ones: more indoor units, more connections, more ways for a layout decision to come back to haunt you.

• Zone Air publishes 4.8 out of 5 across 141 verified reviews on its DIY mini splits page, with recurring praise for the pre-charged line set install and the hidden-equipment look of the concealed systems. It sells direct first and then through distributors and Amazon, so pricing and support come straight from the manufacturer.
• MRCOOL has the longest public feedback trail of the DIY brands, including its 3.2 out of 5 Trustpilot rating from 89 reviews (47% one-star, September 2026). Praise centers on install simplicity and parts availability; complaints center on warranty handling and support response.
• Mitsubishi scores well in contractor and professional satisfaction surveys but shows up rarely in DIY communities, because its systems are installer-driven by design.
• Other sources worth reading: r/DIYHeatPumps for real install write-ups, manufacturer spec sheets and submittals for static pressure and capacity tables, and ENERGY STAR's ductless guidance for the efficiency basics.

One caveat on research: professional-channel durability data doesn't transfer cleanly to a DIY project, and DIY forum data doesn't tell you much about a Mitsubishi system. Weight the feedback that comes from people who installed the way you plan to install.

Choosing the Best System for Your Home in 2026

Start from the project - whole-house retrofit versus one addition - then your preferred indoor unit style, your cold-weather needs, and your budget. Then narrow.

• Best DIY multi zone concealed duct: Zone Air. The only brand here with slim concealed-duct handlers in a pre-charged DIY system, mixable with wall and cassette heads, with line sets ordered by the foot and 3-zone concealed bundles at $4,809.99.
• Best DIY wall/cassette multi zone: MRCOOL. Largest DIY community, proven QuickConnect system, up to six zones on one condenser, 23 SEER2 on the 3-zone - strong when you don't need hidden heads, or when one central ducted handler fits the house.
• Best non-DIY concealed duct: Mitsubishi. Up to eight zones, the widest static pressure and duct design latitude, documented cold-climate capacity, and contractor-backed warranty - when the budget supports professional installation.

Your next step: map your rooms, list your zones, estimate BTU per space, and confirm you have cavity access above every room you want hidden. Then measure each line set run before ordering, so you can buy the exact length instead of coiling or joining copper.

FAQ: DIY Multi Zone Concealed Duct Mini Splits

Is there a true DIY multi zone concealed duct mini split?

Yes. Zone Air sells slim concealed-ducted air handlers (9,500 and 11,000 BTU) on pre-charged quick-connect line sets, in 2- and 3-zone bundles or mixed with wall and ceiling cassette heads on one 27,000 BTU condenser. Because the line set ships pre-charged, you never open the refrigerant circuit, so no vacuum pump and no EPA 608 certification are needed for the refrigerant work.

Does MRCOOL make a DIY concealed duct mini split?

MRCOOL sells a DIY Hybrid Ducted Air Handler in 24,000 and 36,000 BTU, and it connects to a DIY condenser alongside wall or cassette heads. It is a multi-position central air handler (upflow, downflow or horizontal) built for whole-home ductwork, not a slim short-run concealed head, so it is a different product than a concealed-duct zone serving two to four rooms off 8 to 15 ft branches.

How efficient are concealed duct mini splits compared with wall heads?

Lower, because short duct runs add static pressure. Zone Air's single-zone concealed systems are rated 19 to 19.6 SEER2 and the 3-zone concealed bundles 22 SEER2, while its 12,000 BTU 230V wall system is 24 SEER2. That is still far above a typical central system at 14 to 16 SEER2.

How much ceiling space does a concealed duct mini split need?

Zone Air's concealed air handlers are about 8 inches tall, so you need that plus room for short branch ducts and a return path - an attic, a dropped ceiling or a soffit. Keep branches to roughly 8 to 15 ft, total equivalent duct length under about 25 to 40 ft, and external static pressure near or below 0.5 in. w.c.

Can I install a Mitsubishi concealed ducted system myself?

Practically, no. Mitsubishi horizontal-ducted indoor units use flare connections that must be pressure tested, evacuated with a vacuum pump and charged, which requires EPA Section 608 certification, and the longer warranty terms depend on installation by a Mitsubishi-certified contractor plus registration.
