3-Zone DIY Mini Split Heat Pump (27K–36K BTU): MRCOOL, Pioneer, Senville & Zone Air Compared

Quick Answer: Best 3-Zone DIY Mini Split Option Right Now

Here's a quick side-by-side of two popular options:

• MRCOOL DIY 5th Gen 27K (9k + 9k + 9k): The MRCOOL DIY Multi-Zone system has a SEER2 rating of 23, quick-connect pre charged line sets (fixed lengths of 16, 25, 35, or 50 ft), and wall-mount indoor units. Solid brand, but fixed line set lengths can leave excess coil behind the condenser.
• Zone Air 27K 3-zone (customizable heads): Custom-length pre charged line sets sized to your actual runs, mix-and-match indoor unit styles (wall, cassette, concealed ducted), and a lower regular price for comparable configurations.

Zone Air's custom-length line sets reduce the unsightly coil of extra line on the wall, improve the finished appearance, and simplify installation compared to MRCOOL's fixed-length approach.

Pioneer and Senville offer strong performance and competitive pricing, but they usually require vacuuming, charging, and a licensed installer for the refrigerant side. They're DIY friendly only if you're comfortable hiring an HVAC tech for that work.

Bottom line: For true homeowner DIY multi zone installs, consider Zone Air first or MRCOOL DIY 5th Gen as the main alternative. For pro-assisted installs where you prefer to save on equipment and spend on labor, Pioneer and Senville 27K–36K BTU systems are strong value options.

Understanding 3-Zone Mini Splits (27K–36K BTU)

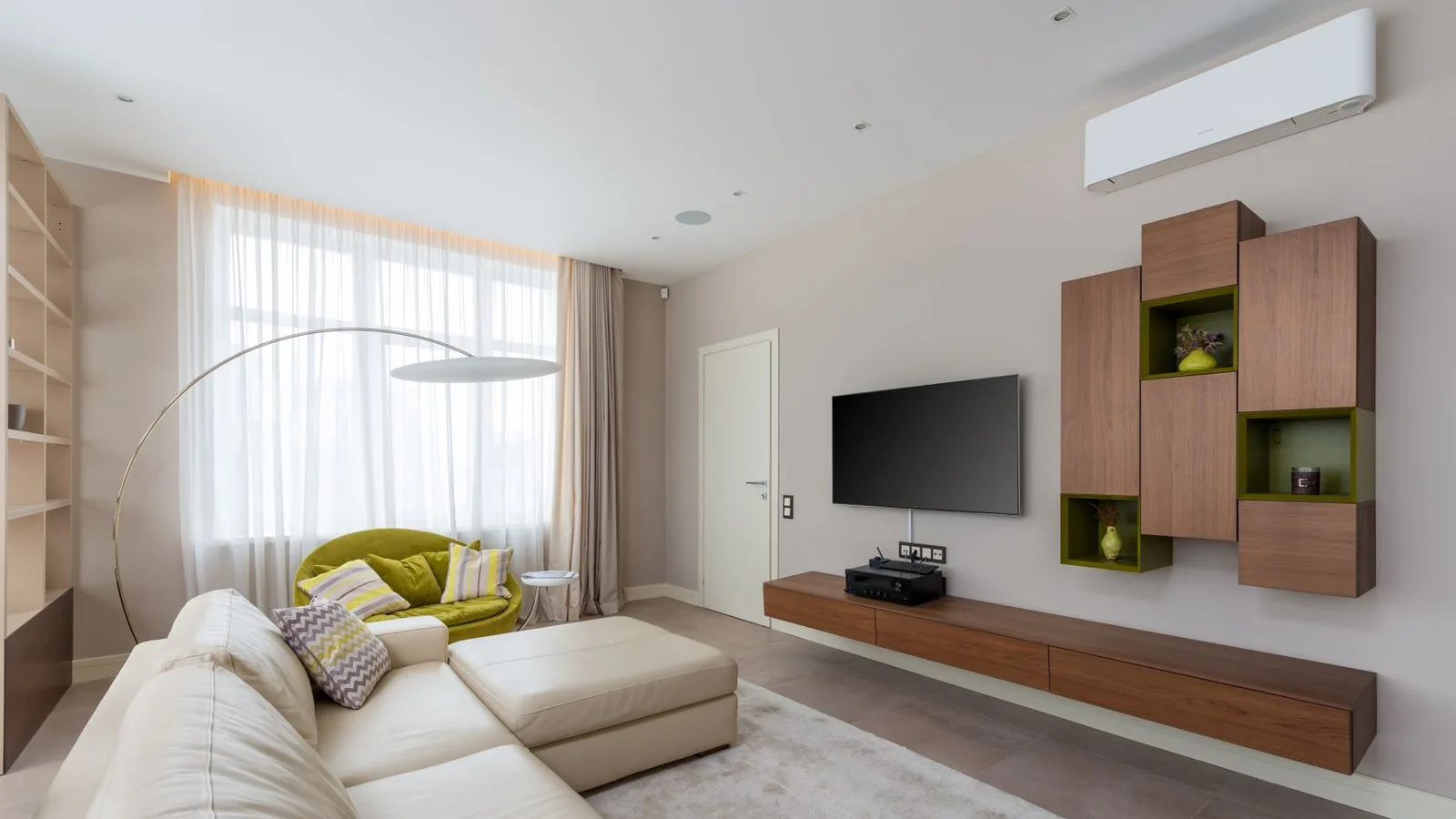

A 3-zone ductless mini split heat pump connects one outdoor unit to three indoor air handler units, each with its own thermostat and remote. This gives you independent zone control across three distinct rooms without any ductwork.

• 27,000 BTU: Typically configured as 9k + 9k + 9k zones. Think three bedrooms or two bedrooms plus a home office.
• 36,000 BTU: Common splits include 12k + 12k + 12k or 9k + 12k + 15k for larger living rooms or open-plan spaces.

A heat pump moves heat rather than creating it, which makes these systems far more efficient than electric resistance heating. Variable-speed inverter technology adjusts compressor speed continuously to maintain steady temperatures, and the outdoor unit can modulate output among zones so active rooms get priority. Targeted energy savings are achieved by conditioning only the rooms that are in use.

Multi zone mini splits are ideal for homes with separate bedrooms, a living area, and a home office or finished garage needing independent temperature control. Because ductless mini split systems skip ductwork entirely, they avoid the 20–30% duct losses common in older homes and additions where adding ducts is expensive or impractical. Mini split systems can provide both heating and cooling from the same equipment, handling scorching summers and freezing winters alike.

Key Brands for 3-Zone DIY Mini Splits: MRCOOL, Pioneer, Senville & Zone Air

Four brands dominate the 27K–36K BTU 3-zone market in North America: MRCOOL, Pioneer, Senville, and Zone Air. All offer multi zone heat pump systems with inverter compressors and modern refrigerants, but their install philosophies differ significantly.

• MRCOOL DIY: The most recognized name in DIY mini splits. The 5th Gen multi-zone lineup uses pre charged quick connect line sets so homeowners can install without a vacuum pump. MRCOOL pioneered this category, but their fixed line set lengths limit flexibility.
• Pioneer: A popular budget-friendly brand with excellent SEER ratings (up to SEER2 24.0 in the Quantum Ultra triple zone). However, Pioneer is generally not a no-vacuum DIY system and often needs professional connection and evacuation of line sets.
• Senville: Value-focused with features like Wi-Fi and quiet indoor units. Solid cold-climate performance in the Aura series. But Senville typically requires pro install of the refrigeration side, and warranty activation requires licensed HVAC evacuation and pressure testing.
• Zone Air: Combines custom-length pre charged line sets, competitive pricing, and flexible indoor unit options. The same 3-zone outdoor condenser can be configured with wall-mounted, concealed ducted, and cassette units, giving homeowners more control over aesthetics room by room.

While MRCOOL DIY systems are easier to install without HVAC equipment, their fixed line set lengths are less flexible than Zone Air's customizable pre charged line set options. All four brands use modern refrigerants and inverter compressors suitable for year-round use in most U.S. climates.

Already own one of these and seeing a code on the display? Each brand name above links to its full error code lookup.

MRCOOL DIY 5th Gen 3-Zone Systems (27K & 36K BTU)

MRCOOL DIY 5th Gen multi zone units are a leading choice for homeowners who want to install a mini split without specialized tools, vacuum pumps, or refrigerant gauges. MRCOOL is the only company with certified pre charged line sets (Intertek-listed), which adds a layer of third-party safety validation.

Key details for the MRCOOL DIY 5th Gen Multi-Zone 27K BTU:

• 27,000 BTU capacity with typical 9k + 9k + 9k indoor units, each covering roughly 300–400 sq ft of room space.
• Pre charged quick connect line sets with R-454B refrigerant. No vacuuming required.
• The MRCOOL DIY 5th Gen has a SEER2 rating of 23. MRCOOL DIY systems use pre-charged line sets for easy installation across all zones.
• Smart home integration allows control via the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant. You can adjust each zone by phone or voice command.
• MRCOOL also offers 36K BTU 3-zone options, pairing a larger outdoor unit with 12k + 12k + 12k indoor air handlers or similar mixes for bigger homes.

Performance highlights:

• The standard MRCOOL DIY 5th Gen multi-zone is rated to keep heating down to about -13°F (heating range -13°F to 75°F) and to cool in outdoor temperatures up to 122°F. MRCOOL's separate Hyper Heat models are rated to -22°F.
• Auto-restart after power outages, louver position memory, and quiet operation keep background noise levels low indoors.

Warranty: 7-year compressor and 5-year parts on 5th Gen systems, with no registration required per MRCOOL's published warranty. The only complaint you'll commonly hear is mixed service support when units are installed purely as DIY, since some contractors prefer not to service systems they didn't install.

Pioneer & Senville Multi-Zone 27K–36K Systems: Value with Pro-Assisted Install

Pioneer and Senville are often priced competitively in the 27K–36K BTU multi zone segment, but both brands typically assume professional line set connection and vacuuming. Senville and Pioneer systems typically require professional handling for installation and maintenance, and proper installation is critical to maintain warranty coverage on these non-DIY systems.

Pioneer:

• Typical 3-zone heat pump packages range from 27,000 to 36,000 BTU with flexible indoor head configurations (9k + 9k + 18k, 12k + 12k + 12k, and many other combinations per their matching table).
• Strong efficiency ratings (SEER2 up to 24.0, HSPF2 around 10.5 for the Quantum Ultra) and robust support documentation.
• Line sets are not pre charged; standard HVAC installation with vacuum, gauges, and charging is expected.

Senville:

• Senville 3-zone models like the SENA-30HF/T deliver 28,000 BTU cooling and outstanding cold-climate heating down to -22°F. Low-temperature operation is possible with advanced models functioning efficiently at those extremes.
• Cold-climate capabilities should be checked by reviewing HSPF2 efficiency and minimum operating temperatures, where the Aura series excels with a 10-year compressor warranty and 5-year parts.
• Wi-Fi connectivity and quiet indoor units make Senville attractive for bedrooms and offices, but you'll still need to hire a pro to pull vacuum on the line sets and open the valves.

Many HVAC contractors are more willing to service Pioneer and Senville than MRCOOL DIY models, which can influence long-term ownership. These brands are smart choices when you prefer a partial DIY approach (you handle mounting and electrical, a tech handles refrigerant) rather than full no-vacuum DIY.

Why Zone Air Is Often the Best 3-Zone DIY Choice

Zone Air focuses specifically on solving the pain points of MRCOOL-style DIY installs, especially line set length limitations and indoor unit flexibility. If you've heard about DIY mini splits but want more climate mastery over room-by-room comfort and equipment layout, Zone Air's 3-zone systems are worth a close look.

Custom-length pre charged line sets:

• Homeowners can order pre charged line sets in lengths tailored to their actual runs instead of being limited to 16, 25, 35, or 50 ft fixed sizes.
• Less coiled line behind the outdoor unit means a cleaner appearance, fewer brackets, and easier routing through tight spaces. This is particularly valuable on multi zone projects where each indoor unit may be at a different distance from the condenser.

Competitive pricing:

• For similar 27K–36K BTU 3-zone configurations, Zone Air typically comes in at a lower price point than comparable MRCOOL DIY systems while maintaining multi zone versatility. You can save real dollars without sacrificing features.

Indoor unit flexibility:

• The same 3-zone outdoor unit can be paired with a mix of wall-mounted, concealed ducted, and ceiling cassette air handlers.
• Example: wall units in bedrooms, a cassette in an open-plan living room, and a concealed ducted unit for a hallway or adjacent small rooms.
• This mix-and-match approach lets homeowners prioritize aesthetics and airflow design in each room instead of being forced into three identical wall units.

If you want a true DIY 3-zone mini split with tailored line set lengths and customizable indoor styles, consider Zone Air before defaulting to MRCOOL. The company offers U.S.-based support, 7-year compressor and 5-year parts warranty, and clear documentation designed for homeowners, not just contractors.

Pre-Charged vs Standard Line Sets: What DIYers Need to Know

Pre charged line sets come factory-filled with refrigerant and sealed with special valves. Standard copper line sets must be evacuated with a vacuum pump and charged on site by a technician. Pre-charged line sets eliminate the need for vacuuming, which is the single biggest barrier for homeowner installation.

Pre charged benefits:

• MRCOOL DIY and Zone Air systems let homeowners connect line sets without a vacuum pump, as long as instructions are followed carefully. Installation requires no specialized tools or training beyond basic hand tools.
• They are pre-charged with eco-friendly R-454B refrigerant and rated to handle pressures up to 921 PSI.
• This easy installation approach can save hundreds of dollars in tool rental or HVAC labor.

Fixed-length limitations:

• MRCOOL DIY offers a limited range of line set lengths (16, 25, 35, or 50 ft), which may require coiling excess line behind the outdoor unit. That excess complicates mounting and can look messy without a line set cover.

Zone Air's custom-length approach:

• Homeowners select lengths much closer to their real-world runs, improving install neatness and reducing the need for creative hiding solutions. On a multi zone project with three indoor units at different distances, this flexibility is substantial.

Pioneer and Senville generally ship systems expecting standard uncharged line sets and a professional with gauges and a vacuum pump. That's safer for true refrigeration work but far less accessible for a homeowner who wants to DIY the entire install.

Sizing a 3-Zone Mini Split: When to Choose 27K vs 36K BTU

Correctly sizing a 3-zone outdoor unit is critical for efficiency, comfort, and longevity of any heat pump system. Choosing between 27k and 36k BTU systems requires evaluation of heating and cooling loads in each room. A free mini split sizing calculator that accounts for climate and insulation will get you closer than square footage alone.

Simple rule-of-thumb sizing:

• 9k BTU indoor unit: Roughly 300–400 sq ft - typical bedrooms or home offices.
• 12k BTU indoor unit: Around 400–550 sq ft - larger bedrooms, small living rooms, or finished basements.
• 18k BTU indoor unit: 700–1,000 sq ft - open-plan living and dining areas.

Properly sized indoor air handlers should match specific room sizes to avoid hot or cold spots.

When 27K makes sense: 27k BTU systems are suited for spaces around 1,000 to 1,250 square feet. A 9k + 9k + 9k configuration works well for three small-to-medium rooms with average insulation.

When to step up to 36K: 36k BTU systems are ideal for larger footprints spanning 1,500 to 2,100 square feet. Think 12k for a living room, 12k for a master bedroom, and 12k for a combined office/guest room. Higher ceilings, poor insulation, or more windows also push you toward 36K.

Oversized mini splits can cause inefficiencies such as short cycling and poor humidity control, so don't just buy the biggest unit on the market. Detailed specifications for heating capacity at varying temperatures are essential for evaluating heat pumps in cold climates. For winters that regularly dip below 0°F, err slightly toward the higher capacity and check each brand's low-ambient heating specs.

Installation Overview: How a 3-Zone DIY Mini Split Goes In

Even with DIY products like MRCOOL or Zone Air, electrical work must meet local code and may require a licensed electrician in many jurisdictions. The installation process itself is accessible but requires careful planning.

Main steps:

1. Planning: Choose the outdoor unit location (adequate clearance, noise separation from neighbors, service access) and indoor head placements for each of the three zones.
2. Mounting indoor units: Level brackets on interior walls, drill 2–3 inch wall penetrations for line sets, condensate drain, and control cables.
3. Installing the outdoor unit: Set on a concrete pad or wall bracket, ensuring adequate airflow around the condenser and proper vibration isolation.
4. Routing pre charged line sets: Gently bend line sets to each indoor head, respecting minimum bend radius (typically around 4 inches). Protect exposed runs with line set covers or conduit.
5. Electrical connections: Run a dedicated 208/230V circuit from your panel to the outdoor unit, then low-voltage control connections to each indoor unit as required by the system.
6. Commissioning: Follow the manufacturer's startup checklist. For MRCOOL or Zone Air DIY systems, this includes carefully opening the service valves on the pre charged line sets in the correct order.

Pioneer and Senville installations include an additional step: professional evacuation of the line set and charging by an EPA-certified HVAC technician. Plan line set routes carefully in advance, especially for multi zone systems with three separate runs, to avoid tight bends and stay within the brand's maximum length and vertical separation limits.

Cost, Efficiency, and Warranty: What to Compare

Upfront cost is only part of the story. Efficiency ratings (SEER2, HSPF2) and warranty terms directly affect long-term ownership cost.

• Pricing: MRCOOL DIY often runs higher than Pioneer or Senville on equipment alone, while Zone Air is usually slightly lower than MRCOOL for comparable DIY 3-zone packages. DIY systems often simplify installation but may come with higher hardware costs compared to professional systems - however, DIY installation can save $3,000–$5,000 on HVAC costs by eliminating labor.
• Efficiency: High SEER2 ratings lead to lower utility bills. MRCOOL's single-zone DIY units reach 23.6 SEER2, and its 27K 3-zone systems are rated 23 SEER2. HSPF2 represents heating efficiency for heat pumps, factoring in actual performance at specific temperatures - a critical number for cold-climate buyers. Look for ENERGY STAR certification on the specific model you're comparing; not every configuration from every brand carries it. Mini splits can save up to 35% compared to window units, making them a cheap-to-run replacement for older cooling equipment.
• Inverter technology: All four brands use variable-speed inverter compressors for part-load efficiency and quieter operation, so you can expect smooth temperature control rather than harsh on/off cycling.

Warranty comparison:

• MRCOOL DIY: 7-year compressor, 5-year parts for 5th Gen systems. MRCOOL's published warranty states no registration is required for that standard coverage.
• Pioneer and Senville: Pioneer covers parts and compressor for 5 years if you register within a week of a proper install, and 1 year of parts if you don't. Senville stands out with a 10-year compressor warranty and 5-year parts, but its terms state that DIY installation voids coverage and that a licensed HVAC professional must pressure test and evacuate the line sets.
• Zone Air: Competitive 7-year compressor and 5-year parts warranty, designed with DIY owners in mind. Check Zone Air's current product documentation for exact terms.

Some HVAC contractors are hesitant to work on DIY-labelled systems, whereas they may be more accessible for servicing Pioneer, Senville, or Zone Air if the installation meets code and documentation is provided. Factor that into your purchase decision - you don't want to replace a filter and discover you can't find a tech willing to handle a warranty claim.

Which 3-Zone DIY Mini Split Should You Choose?

The best system depends on how much of the install you want to DIY, your budget, your home's layout, and how much you care about aesthetics.

• For true full DIY with no vacuum pump: Consider Zone Air first for customizable pre charged line sets and flexible indoor unit combinations. MRCOOL DIY 5th Gen is the main alternative where fixed line sets and a narrower range of indoor unit styles are acceptable.
• For partial DIY (mounting units yourself, hiring a tech for refrigerant work): Pioneer or Senville offer low equipment cost and traditional service structures that contractors are comfortable with.
• For design-focused homes: Zone Air's ability to mix wall units, concealed ducted, and ceiling cassette indoor units on the same multi zone outdoor unit is unmatched in the DIY category.

Map your rooms, measure approximate distances for each line set, and compare how well each brand's line set options (fixed vs custom-length) fit your layout. Homeowners in 2026 looking for a 27K–36K BTU 3-zone system should prioritize inverter compressors with strong low-ambient heating performance and pre charged, right-length line sets to make installation cleaner and easier.

Next Steps: Planning Your 3-Zone DIY Mini Split Project

Move from research to action by sketching your home's layout and listing your three target zones.

• Measure room sizes and ceiling heights to select 9k, 12k, or 18k indoor units appropriately.
• Estimate line set lengths from the proposed outdoor unit location to each indoor head, noting elevation differences.
• Check local electrical code for breaker size and wire gauge requirements for 27K–36K BTU outdoor units.
• Compare current 2026 pricing and promotions on MRCOOL, Pioneer, Senville, and Zone Air 3-zone systems, focusing on total installed cost including any hired labor.
• If you value DIY simplicity plus configuration flexibility, look closely at Zone Air's multi zone offerings and custom pre charged line set options to streamline your project.
• Once you've chosen a model, download the full installation manual in advance and read it end-to-end before ordering equipment. You'll catch site-prep tasks early and avoid surprises on install day.
