How to Run a Mini Split Condensate Drain
Every time a mini split cools, it pulls water out of the air. That water drips into a pan under the indoor coil and has to get out of the house through a drain line, on gravity alone unless you add a pump. Most indoor leaks come back to this line. Getting it right isn't hard, and between the building code and the install manuals, nearly all of the rules are written down.
Where the water goes

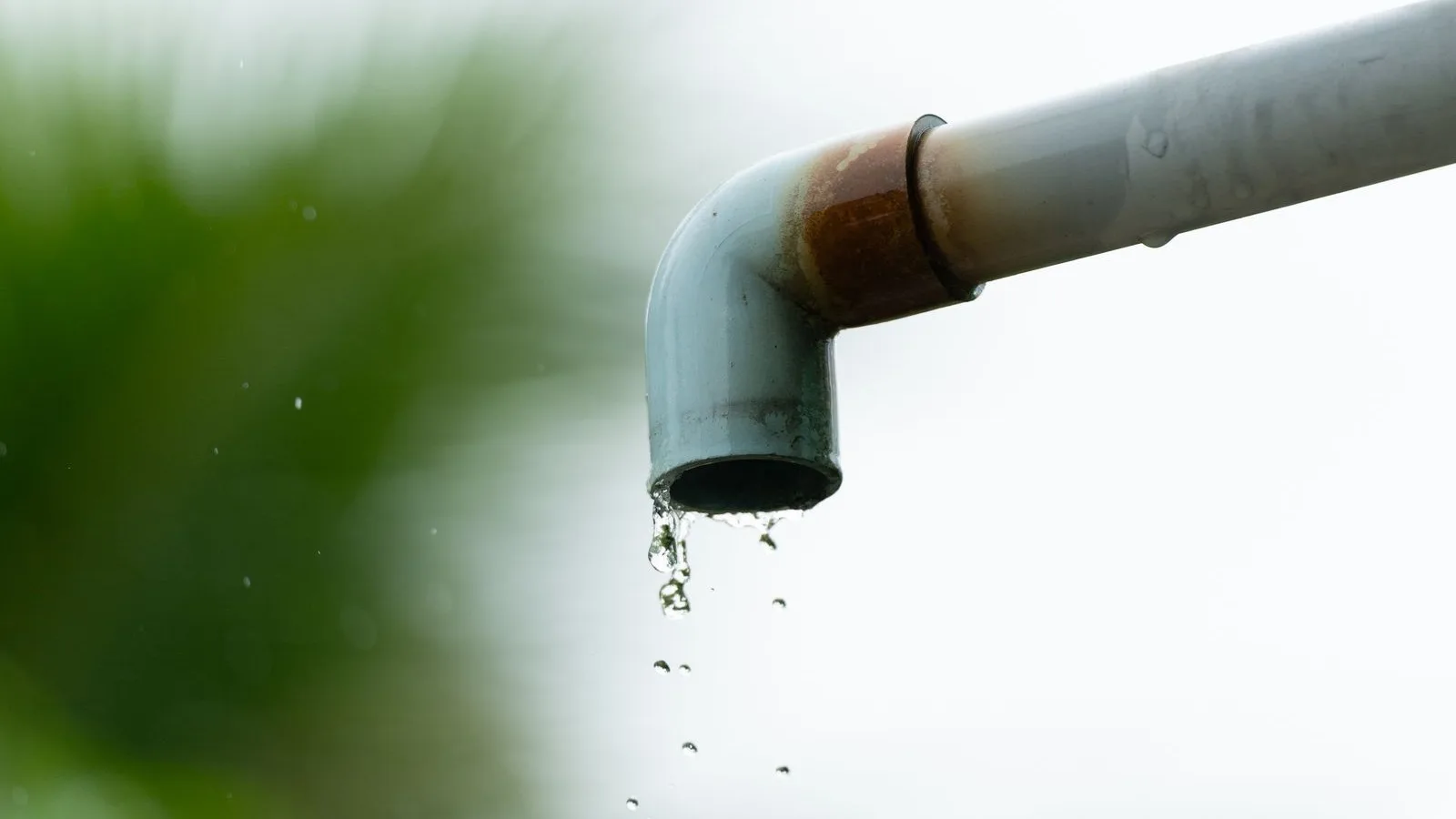

Condensate drips off the indoor coil into the drain pan and leaves through a short flexible hose on the back of the unit. On a typical wall-mount job, that hose is taped into the bottom of the line set bundle and goes out the wall hole. From there it either empties outside or joins a longer drain line. The code calls wherever it ends up an "approved place of disposal". Section 307.2.1 of the 2021 International Mechanical Code says condensate has to be carried from the drain pan outlet to one.
What counts as approved depends on where you live. Open ground away from the foundation, a gutter or an indirect connection to the plumbing can all qualify. Your local building department makes the call.
The code minimums
A lot of US jurisdictions adopt the International Mechanical Code, often with local changes. The 2021 IMC handles condensate in section 307. For a mini split, these are the parts that matter:
| Section | Requirement |
|---|---|
| 307.2.1 | Condensate goes from the drain pan outlet to an approved place of disposal. |
| 307.2.2 | Drain line no smaller than 3/4-inch pipe size, and no reduction in size between the pan connection and the discharge. Minimum slope 1/8 inch per foot (1 percent) in the direction of flow. |
| 307.2.4.1 | Ductless mini-split equipment that produces condensate gets either an inline check valve in the drain line or a trap. |
| 307.2.5 | The drain must be set up so blockages can be cleared and maintenance done without cutting the line. |
| 307.3 | A condensate pump in an uninhabitable space such as an attic or crawlspace must be connected so the equipment stops if the pump fails. |
Here's a wrinkle. The factory drain hose on most heads is narrower than 3/4-inch pipe. Mitsubishi's MSZ-GL manual specifies a soft extension hose with a 19/32-inch (15 mm) inside diameter. How your inspector applies the 3/4-inch rule to that hose, and to whatever pipe it connects to, is worth asking about before you buy fittings.
Routing the line
On the basics, the install manuals all say the same thing.
Run it downhill the whole way. Mitsubishi's manual says the hose should point downward so it drains easily. Its "do not" drawings show the classic mistakes: a section that rises, a wavy run that collects water and traps air, and a hose end sitting in water. Pioneer's manual warns against kinks, dents and siphons, since each one turns into a water trap.
Keep the end clear. Pioneer says not to put the end of the hose in water or in a container that collects water, and Mitsubishi's drawing shows it held about 2 inches (50 mm) above a ditch or drain.
Put the drain hose at the bottom of the line set bundle. Cooper & Hunter's manual warns that a drain hose on top can make the drain pan overflow. It also goes on the same side as the refrigerant piping, per Pioneer. Mitsubishi warns that moving the piping to the left without refitting the drain hose and drain cap correctly can leave water dripping from the unit, and Cooper & Hunter says to plug the unused drain outlet with its rubber plug.
Wrap any part of the hose that runs through a room in insulation. Pioneer and Mitsubishi both call for it, because a cold hose sweats. And seal the joints. Pioneer has you wrap the joint between the unit's hose and an extension in Teflon tape. Mitsubishi says to push the hose firmly into a rigid PVC pipe when you connect to one.
To test it, pull the filter and pour a little water into the drain pan, the way Pioneer's manual describes. It should come out the far end quickly, with nothing showing up inside.
Trap or check valve?
This is where the code and the manuals seem to clash. IMC 307.2.4.1 says a mini split needs an inline check valve or a trap. Pioneer's manual says don't create a water trap in the drain hose. The check valve is how you satisfy both. It's a small inline part that lets water out and closes against air coming back in, so you meet the code without adding a low spot that holds water. Ask your inspector what they expect. Whatever you fit has to be cleanable or replaceable without cutting the line, per section 307.2.5.
When you need a condensate pump
No way to get the water downhill to somewhere it can go? Then you need a pump. That usually means a head on an interior wall, a basement room below grade, or a unit mounted lower than any available drain. Mini split pumps are small and usually mount close to the head, sometimes inside a line set cover.
Install the pump the way its maker says. If it's in an uninhabitable space like an attic or crawlspace, IMC section 307.3 also requires it to be connected so the equipment shuts off when the pump fails. Many pumps have a safety switch for exactly this. How it hooks up to your indoor unit depends on the model, so follow both manuals.
Freezing in cold weather
A drain line that runs outside can freeze in winter. The outdoor unit makes its own water in heat mode, too, when it defrosts.
Pioneer's manual says to keep the drain hose as close to vertical as possible in cold climates and to insulate it. Water that drains too slowly can freeze in the hose and flood the indoor unit.
For the outdoor unit, Pioneer has you fit the supplied drain joint on heat pump models. Mitsubishi says not to use the drain socket in cold regions, because the drain can freeze and stop the fan. It also says to pick the outdoor unit's spot so its drain water won't soak the ground or cause damage when it freezes.
A head that drips: checklist
- Is it level? An indoor unit tipped forward or away from the drain side will overflow its pan.
- Follow the hose from the unit to the outlet, including inside the wall hole. Look for any rise, dip or kink.
- Check the hose end. It shouldn't be buried, underwater, or plugged with debris or bugs.
- If the piping was ever moved to the other side, make sure the drain hose and cap moved with it and the unused outlet is plugged.
- Algae and dust build up in the pan and hose. Clean them the way your manual says.
- Water on the outside of an uninsulated hose or pipe is sweat, and it can look like a leak.
- In cold weather, check the outside end of the line and the base of the outdoor unit for ice.
If the display shows a code along with the leak, look it up. Some units have a float switch that flags a full pan.
Sources
- 2021 International Mechanical Code, chapter 3, sections 307.2 to 307.3.
- Mitsubishi Electric MSZ-GL installation manual, drain piping and outdoor unit drain.
- Pioneer WAS/WYS installation manual, connecting the drain hose, cold climates and drain joint.
- Cooper & Hunter wall-mounted installation manual, wrapping the piping and cables.
Condensate drain FAQ
How much slope does a mini split drain line need?
The 2021 International Mechanical Code sets the minimum at 1/8 inch per foot of horizontal run (a 1 percent slope) in the direction of flow. The manufacturers add their own rule on top: downhill the whole way, with no section rising and no dips where water can sit.
Does a mini split condensate drain need a trap?
Depends which rule you read, so ask your inspector. The 2021 IMC says ductless mini-split equipment that produces condensate needs either an inline check valve in the drain line or a trap. Pioneer's manual tells you not to create a water trap in the hose. An inline check valve satisfies the code without adding a dip that holds water.
When do I need a condensate pump?
When the drain can't fall by gravity to a safe place to discharge. Think of a head on an interior wall, one in a basement, or one mounted below the outlet. If the pump sits in an attic or crawlspace, the 2021 IMC requires it to be wired so the equipment stops running if the pump fails.
Why is my mini split leaking water inside?
Usually it's the drain hose. It rises or dips somewhere, it's kinked, or its end is sitting in water. It can also be a hose or cap refitted wrong after the piping moved sides, a unit that isn't level, a clog, or a line that froze outside. Pour a little water into the drain pan and watch where it goes.
Can a mini split drain line freeze?
Yes. The indoor unit's drain can freeze where it runs outside, and so can the outdoor unit's drain in heat mode. Pioneer's manual says to keep the hose as close to vertical as possible in cold climates and to insulate it, because slow drainage can freeze and flood the indoor unit. Mitsubishi's manual says not to use the outdoor drain socket in cold regions, because the drain can freeze and stop the fan.
Code sections refer to the 2021 International Mechanical Code. Your jurisdiction may use a different edition, the residential code, or local amendments, and its version is the one that applies. Manufacturer instructions come from the Mitsubishi Electric, Pioneer and Cooper & Hunter manuals linked on this page, as published in September 2026. Those names are trademarks of their respective owners, and this site is not affiliated with them.
